A comparison of balloon injury models of endovascular lesions in rat arteries
© Gabeler et al; licensee BioMed Central Ltd. 2002
Received: 8 April 2002
Accepted: 27 September 2002
Published: 27 September 2002
Balloon injury (BI) of the rat carotid artery (CCA) is widely used to study intimal hyperplasia (IH) and decrease in lumen diameter (LD), but CCA's small diameter impedes the evaluation of endovascular therapies. Therefore, we validated BI in the aorta (AA) and iliac artery (CIA) to compare it with CCA.
Rats underwent BI or a sham procedure (control). Light microscopic evaluation was performed either directly or at 1, 2, 3, 4 and 16 weeks follow-up. The area of IH and the change in LD (LD at 16 weeks minus LD post BI) were compared.
In the BI-groups the area of IH increased to 0.14 ± 0.08 mm2 (CCA), 0.14 ± 0.03 mm2 (CIA) and 0.12 ± 0.04 mm2 (AA) at 16 weeks (NS). The LD decreased with 0.49 ± 0.07 mm (CCA), compared to 0.22 ± 0.07 mm (CIA) and 0.07 ± 0.10 mm (AA) at 16 weeks (p < 0.05). The constrictive vascular remodelling (CVR = wall circumference loss combined with a decrease in LD) was -0.17 ± 0.05 mm in CIA but absent in CCA and AA. No IH, no decrease in LD and no CVR was seen in the control groups.
BI resulted in: (1.) a decrease in LD in CCA due to IH, (2.) a decrease in LD in CIA due to IH and CVR, (3.) no change in LD in AA, (4.) Comparable IH development in all arteries, (5.) CCA has no vasa vasorum compared to CIA and AA, (6.) The CIA model combines good access for 2 F endovascular catheters with a decrease in LD due to IH and CVR after BI.
Keywordsballoon injury rats remodelling restenosis
It is acknowledged that restenosis is the 'Achilles' heel of angioplasty . In vascular interventions like percutaneous transluminal (coronary) angioplasty (PT(C)A), it is well-known that balloon injury (BI) to the arterial wall induces restenosis with a typical decrease in lumen diameter (LD) as a result of dysplastic intimal hyperplasia (IH) with or without constrictive vascular remodelling (CVR), shrink or recoiling [2–7].
To improve the long-term success rate of vascular interventions, restenosis must be prevented. Many strategies have already been evaluated on their potential to prevent restenosis. Interestingly, strategies based on local endovascular techniques adjuvant to PT(C)A and stenting, like experimental brachytherapy and photodynamic therapy (PDT), showed promising results in the prevention of restenosis , while microwave or cryotherapy, are presently gaining interest .
The common animal models for the evaluation of strategies to prevent restenosis are the carotid rat artery, the dog-, the baboon-, the monkey-, the rabbit-, and the pig carotid or coronary arteries .
Since the early eighties, the common carotid artery (CCA) in the rat model is widely applied to study molecular mechanisms and the role of smooth muscle cells in the arterial healing after arterial injury, but it has been criticised as not representative for restenosis development . This is more than likely due to abuse or misinterpretation of the rat carotid artery studies, like unjustifiably comparing various artery types. The dog model has been explored mainly because of their arterial size comparable to humans, low cost and ready availability, but they are not very reactive to diets or mechanical injury. The thrombotic activity of baboons and monkeys is more close to humans but they are expensive, difficult to handle and to maintain in the laboratory.
The larger rabbit and pig models are widely accepted models of restenosis development that mimic human disease, because they are sensitive to develop atherosclerosis after cholesterol-rich diets in large injured arteries [12, 13]. However, the evaluation of endovascular strategies to prevent restenosis in the rat may be cost-effective because of a wide experience and availability of tested antibodies in contrast to other models, but data about injury in other arteries than the carotid artery are not extensive. Comparisons of the effect of balloon injury between various arteries in the rat may add to a better understanding of the arterial healing to injury.
A practical point of attention is that the relatively large diameters of the presently available local delivery devices that are used in endovascular therapies cannot be introduced in the rat CCA without causing major vascular wall injury. Until smaller and more flexible fibres and devices are produced, the present relatively large devices determine the arterial criteria of the animal model. Therefore, we developed a rat model using larger vessels with better access such as the abdominal aorta (AA) as earlier reported and common iliac artery (CIA) as never reported.
A comparison was made with the widely used CCA model to validate the model and to assess artery-type-dependent differences in the healing after injury that may be of value in closely related research topics.
The experimental protocol was approved by The Committee on Animal Research of the Erasmus University of Rotterdam, The Netherlands and complied with 'Principles of Good Laboratory Practice' and 'The guide for the Care and Use of Laboratory Animals'. Ninety-five inbred Wistar rats (Harlan CPB, Austerlitz, The Netherlands) weighing 250–300 grams (g) were used. The animals had free access to rat chow (AM II, Hope Farms, Woerden, The Netherlands) and tap water acidified to pH 4.0, and were maintained in a standard 12-hr light/dark cycle.
The rats were randomly subdivided into 4 groups. In 3 groups a balloon injury was performed of either the right CCA-group (n = 30), the AA-group (n = 30) or the right CIA-group (n = 30). A fourth group (= untreated controls; n = 5) underwent a sham procedure without BI to serve as a baseline control in the CCA, AA and CIA. The animals were sacrificed immediately after intervention or after 1, 2, 3, 4 or 16 weeks for pressure fixation of the artery. Cross-sections were used for planimetric analysis. The weight of the rat was determined pre-operatively and at the time of harvesting.
Ketamine (35 mg/kg), atropine (40 ug/kg) and xylazine (5 mg/kg) were given intramuscularly for general anaesthesia.
Before the study was started, extensive experiments were executed to gain skill in handling the operative procedure.
The common carotid-group
A median neck incision was performed and the wound area was kept wet with gauzes embedded in 0.9% NaCl. The skin, sternocleidomastoid and omo-/thyrohyoid muscles were retracted with 2 Luer retractors. Then, 20 mm of the right CCA was isolated from the carotid sheet. The internal, external and the proximal CCA were temporary occluded with vascular clamps (B-2 Hemoclips) to prevent retrograde blood loss. After proximal arteriotomy, the lumen was flushed with 1 ml heparin solution (50 IU/ml) and antegrade balloon inflation of a 15 mm long CCA segment performed. Xylocaine (5 mg/kg) was applied to prevent vasospasm. The arteriotomy was closed in 2 layers (interrupted 8–0 prolene sutures) and the clamps removed to restore perfusion. Finally, the neck wall was closed in 1-layer (continuous 2–0 Vicryl sutures).
The abdominal aorta-group
A medial laparotomy was performed and the intestines were wrapped in a wetted gauze (0.9% NaCl). The retroperitoneal fascia was opened medially to expose 20 mm of AA from the right renal artery to the iliac bifurcation. Then, the AA was isolated from the inferior caval vein, followed by temporary occlusion of the left and right ilio-lumbar arteries, the proximal and caudal abdominal aorta, respectively. After the arteriotomy of the AA, a 15-mm segment from the renal artery to the bifurcation was balloon injured (see balloon injury). The lumen was flushed with heparin, followed by a 1-layer closure (Prolene 8–0, interrupted) of the arteriotomy and a 2-layer closure (continuous 4–0 and 2–0 Vicryl sutures) of the abdominal wall.
The common iliac artery-group
A 2 F Fogarty Embolectomy catheter (Baxter Health Care Corp., Edward's Div., Irvin, Ca., USA) was inserted to denude the arterial wall at a pressure of 2 bar (manual barometer) by pulling and rotating the inflated balloon from distally to proximally over a 15-mm long segment for 3 successive times . The balloon was deflated proximally and inflated distally. Then, the arteries were flushed with heparin, closed with Prolene 8–0 and marked halfway the denuded segment with a suture (Prolene 8–0).
The rats recovered under an infrared heater to keep the body temperature at 37°C.
After sacrifice, a standard perfusion-fixation procedure via the thoracic aorta was performed under ether anaesthesia at respectively 0, 1, 2, 3, 4 and 16 weeks. The lumen was flushed with a phosphate buffer solution (PBS) at pH 7.45 for 2 min and perfusion-fixed with formaldehyde 1.8% for 10 minutes via a silicon tube at 100 mm Hg for paraffin embedding light microscopy. The distally and half-way marked segment (single suture, 8–0 black nylon, B/Braun, München, Germany) of 20 mm long was harvested after length measurement and stored in fresh 1.8% formaldehyde for at least 24 hr.

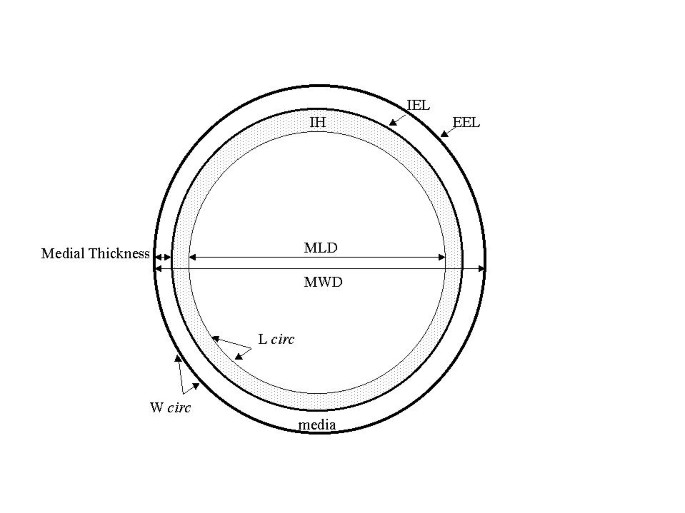

Planimetric analysis of the cross sections
Comparisons were made between different groups of rats at different time points. Each rat accounted for one measurement. Data were expressed as means ± standard error of the mean (SEM). Comparisons including the type*time relations were made using a 2-way ANOVA method with a General Linear Model regression analysis in SAS. Bivariate correlations according Pearson to describe a correlation between type*time and WALLC were used. A difference was considered to be significant at p values less than 0.05.
All animals appeared healthy without significant weight loss at follow-up. No thrombosis, arterial dissection, aneurysms, paraplegia or paralysis was encountered. The wound areas appeared normal besides some mild fibrosis at the suture side. Adjacent lymph nodes frequently covered the sutured arteriotomy.
On microscopy, the endothelial layer was absent in the arteries immediately after BI and was recovered within 2 weeks after BI. In the control arteries the endothelium layer was continuously present.
A representation of the geometric changes in time expressed in weeks
MLD in mm
0.86 ± 0.04
1.53 ± 0.05
0.99 ± 0.02
0.98 ± 0.02
1.63 ± 0.08
1.09 ± 0.02
0.89 ± 0.03
1.70 ± 0.07
1.14 ± 0.04
0.97 ± 0.04
1.45 ± 0.07
1.17 ± 0.05
0.67 ± 0.05
1.47 ± 0.09
1.06 ± 0.03
0.37 ± 0.10
1.46 ± 0.09
0.77 ± 0.07
Media in mm2
0.10 ± 0.00
0.25 ± 0.03
0.13 ± 0.00
0.13 ± 0.01
0.32 ± 0.01
0.18 ± 0.01
0.13 ± 0.01
0.35 ± 0.02
0.21 ± 0.01
0.14 ± 0.01
0.40 ± 0.01
0.21 ± 0.01
0.11 ± 0.00
0.32 ± 0.02
0.19 ± 0.01
0.13 ± 0.01
0.28 ± 0.02
0.15 ± 0.01
Medial Thickness in mm
0.06 ± 0.00
0.09 ± 0.01
0.08 ± 0.00
0.07 ± 0.00
0.14 ± 0.02
0.09 ± 0.00
0.08 ± 0.00
0.12 ± 0.01
0.10 ± 0.01
0.08 ± 0.01
0.14 ± 0.00
0.10 ± 0.00
0.09 ± 0.00
0.13 ± 0.01
0.09 ± 0.01
0.09 ± 0.00
0.11 ± 0.01
0.08 ± 0.00
Constrictive vascular remodelling
Number of vasa vasorum in the tunica adventitia
In the CCA groups, no vasa vasorum were seen, while in the AA and CIA respectively 27 ± 2 and 13 ± 2 vasa vasorum per section at 0 weeks were seen in the tunica adventitia. A significant increase in time was assessed in the AA and CIA groups with respectively 37 ± 2 and 22 ± 2 vasa vasorum/section at 16 weeks (p < 0.05). Sporadically, some vasa vasorum in the tunica media were seen in the AA and not in the CIA and CCA groups.
Balloon injury of the common carotid artery (CCA) in the rat is a thoroughly studied model that has logistical advantages to evaluate dysplastic intimal hyperplasia (IH) and the decrease in lumen diameter (LD) for the evaluation of strategies to prevent restenosis, like endovascular based interventions. However, CCA does not fit well to evaluate endovascular techniques due to the relatively large diameter of endovascular devices and fibre tips.
Furthermore, in contrast to human arteries, the rat carotid artery has no vasa vasorum, contains a much thinner subintimal layer and a smaller percentage of elastin in the tunica media .
In this study the larger – vasa vasorum containing – abdominal aorta (AA) and common iliac artery (CIA) in the rat were validated as an alternative model to be used for the evaluation of endovascular techniques.
In this study, the decrease in LD was higher in CCA and CIA compared to AA after BI. The differences in LD between CCA, AA and CIA are likely explained by an artery-type specific healing response after BI, expressed in the development of IH and constrictive vascular remodelling (CVR), due to differences in the viscoelastic composition, the vasa vasorum in the tunica adventitia and vessel diameter.
Another explanation, however, may be the lower dilatation ratio in the aorta due to its large diameter, causing less IH development and less remodelling. Indeed, we found that in CCA, AA and CIA, IH developed differently at long-term after BI. The extent of CCA IH in our model was similar to that in previous reported rat models [14, 18]. Relatively more IH (expressed by the IH to media ratio) developed in CCA and CIA compared to the AA. In CCA and CIA, IH led to a higher decrease in LD.
With regard to CVR, the wall circumference temporarily increased in the CCA and CIA, and remained increased in AA. In CCA and in CIA a decrease of wall circumference was seen in contrast to the increased wall circumference of AA at 16 weeks. Apparently, AA compensated to IH by positive (= outward) remodelling underlining the blood reservoir capacity of AA, but led to shrinkage in the CCA and CIA at 16 weeks underlining the peripheral resistance capacity of CCA and CIA.
Earlier reports, using a PTA catheter or a chain-encircled balloon catheter in pig models described that IH is not correlated to CVR, suggesting that the pathogenesis is not similar [19, 20]. In this study, the absence of a decrease in LD and CVR, but still the development of IH in the AA supports these findings, but are in contrast with a decrease in LD, increase in IH and an increase in CVR in the CCA and CIA.
With regard to the media area, no significant difference was found in CCA, AA and CIA in time. With regard to the maximal medial thickness, an increase was seen in CCA but not in CIA and AA after 16 weeks. Apparently the BI caused more damage in the CCA than in AA and CIA, leading to an increased proliferation in the tunica media.
A plausible explanation is likely in the viscoelastic differences between CCA, AA and CIA. The rat CCA in contrast to the human CCA is an integrating part of the circle of Willis and resembles the rat cerebral arteries characterised by a low elastin/ high collagen content and a low contraction potential. In contrast, the systemic AA and CIA have a high elastin/ moderate collagen content and a high contraction potential . Then, the medial content of contractile vs synthetic SMCs varies in CCA, AA and CIA. Their role in remodelling is not fully elucidated but likely adapt the viscoelastic content in the extracellular matrix. Indeed, Goldberg et al showed in rats that an artery-type dependent variation of both synthetic and contractile SMCs determined the vascular wall response . Notably, the attenuated response of the AA could be explained by the lumen diameter to BI pressure ratio as suggested earlier in a rat and rabbit model.
Furthermore, the absence of vasa vasorum in the CCA in the tunica adventitia in contrast to the AA and CIA is strikingly in this study. The increased number in the latter two may favour the arterial healing via reperfusion that may lack in the tunica adventitia of the CCA. The presence of vasa vasorum may explain the difference in arterial healing between the arteries. Indeed, Pels described that the number of vasa vasorum in the tunica adventitia changed after balloon injury in pigs, which may be a component of arterial remodelling after angioplasty . Our data of the CIA, but not of the AA support this conclusion. Badimon described a discrepancy between CCA and the coronary arteries , while Ward described a discrepancy between the CIA and coronary artery types after standard BI , indicating the importance of an arterial specific healing response as emphasised in our study.
Interestingly, the arteries of rabbit, pigs and humans, are also characterised by vasa vasorum in the tunica adventitia. Thus, the CIA and AA of the rat are closer to the arteries of the larger models than the CCA of the rat.
A limitation of this study is that no vasodilator was applied. However, geometric analysis of the sections within the groups did not show any significant difference, assuming that the contribution of reversible and chronic vasodilatory spasm was negligible.
Another limitation was the difference in weight between the animals in time. The influence of increased weight on the growth of the artery is well known and was corrected in this model.
Further, the use of balloon catheters that precisely fit with the arterial lumen might be suggested for comparing BI. Indeed, the deflated catheter diameter of the 2 F balloon fitted well in CCA, CIA and moderately in AA, but the inflated balloon diameter extended for 45–60% in these arteries (NS: unpublished data). Roubin described that an increased balloon injury resulted in an increased development of restenosis needing bypass surgery in a prospectively randomised clinical trial of 336 patients . In this study, the force to over-stretch the artery was standardised and comparable between the balloon injured arteries.
Besides differences in arterial morphology, the severity of injury and strain  – and inter-species differences  in the healing response and metabolism demand a careful extrapolation to the human situation.
(1.) BI using 2 bar resulted in a decrease in LD in CCA due to IH,
(2.) In a decrease in LD in CIA due to IH and CVR,
(3.) No change in LD in AA.
(4.) Comparable IH development in all arteries,
(5.) CCA has no vasa vasorum compared to CIA and AA,
(6.) Discrepancies in changes in LD by IH development and CVR after BI depend on artery type. This should be taken into account in the interpretation of the efficacy of interventional techniques to inhibit IH and a decrease in LD.
(7.) The CIA model is suitable to evaluate fibre-based therapies, as it combines good access for 2 F endovascular catheters with the development of a decrease in LD due to IH and CVR after BI.
common carotid artery
common iliac artery
constrictive vascular remodelling
external elastic lamina
internal elastic lamina
maximal lumen diameter
maximal wall diameter
percutenous transluminal (coronary) angioplasty
standard error of the mean
smooth muscle cell
This study was supported by the Dutch Heart Foundation (project grant NHS 97.181). The authors are grateful to Jan Honkoop for expert technical assistance with the geometric analysis, Dr Marc van Sambeek for freely giving dilation catheters, Patricia Lobe and Manon Holtman for excellent staining of the cross-sections.
